PD2003

PD2003

Details

Description of the design Mirror with high positive dispersion
Type Mirror
Subtype High(positive)-dispersion mirror
Angle of Incidence in degrees 5 °
Polarization regime (primary spectral range) p
Spectral category NIR
Spectral working range low end 1025 nm
Spectral working range high end 1055 nm
Central wavelength 1040 nm

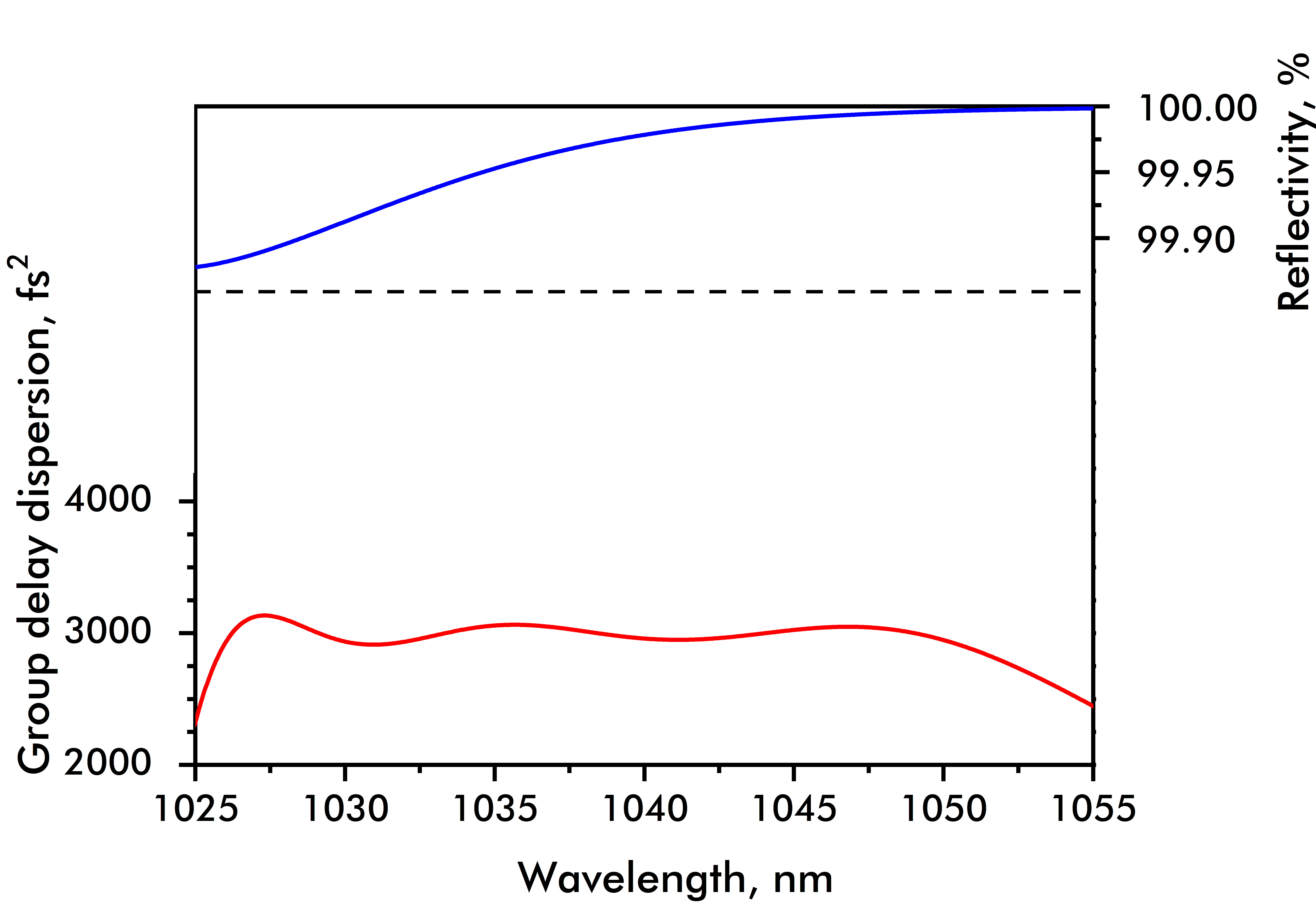

Nominal GDD 3000 fs2
Minimum reflectance 99.9 %
Maximum reflectance -
Minimum transmission -
