Request
PC37_2
Details

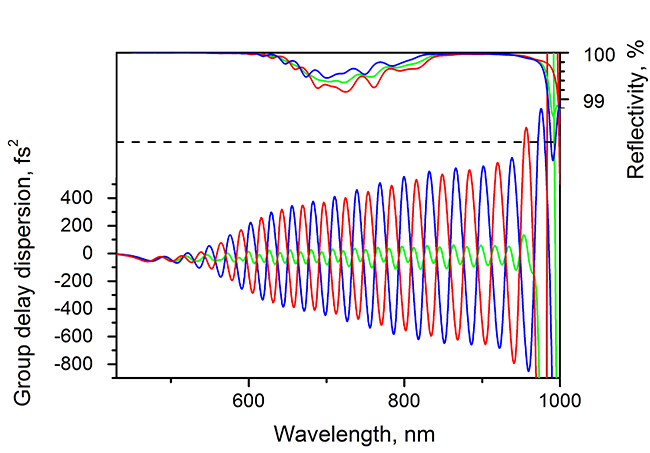

| Description of the design | Broad-band double-angle dispersive mirror |
| Type | Mirror |
| Subtype | BBDM (broad-band dispersive mirror) |
| Central wavelength | 700 nm |
| Spectral working range low end | 450 nm |
| Spectral working range high end | 950 nm |
| Maximum reflectance | - |
| Minimum reflectance | 99 % |
| Nominal GDD | -30 fs2 |
| Angle of Incidence in degrees | 5 ° |
| Angle of Incidence in degrees (double-angle) | 20 ° |
| Polarization regime (primary spectral range) | s |
| Minimum transmission | - |
| Spectral category | VIS-IR |
