Request
PC148
Details

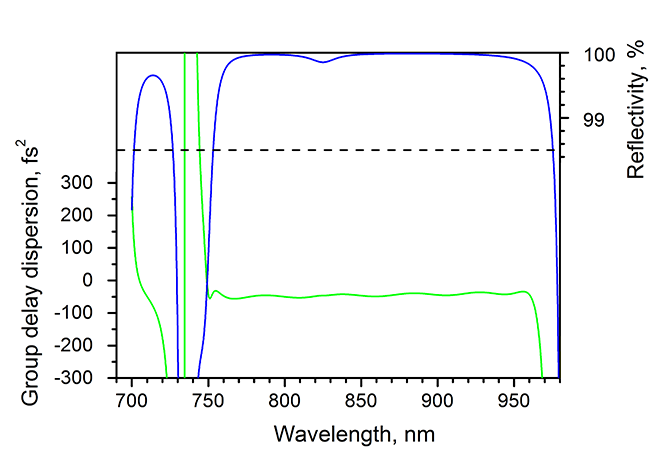

| Description of the design | Dispersive mirror with high reflectivity |
| Type | Mirror |
| Subtype | DM (dispersive mirror) |
| Central wavelength | 860 nm |
| Spectral working range low end | 760 nm |
| Spectral working range high end | 960 nm |
| Maximum reflectance | - |
| Minimum reflectance | 99 % |
| Nominal GDD | -50 fs2 |
| Angle of Incidence in degrees | 5 ° |
| Polarization regime (primary spectral range) | p |
| Minimum transmission | - |
| Spectral category | IR |
