HRVLT

HRVLT

Details

Description of the design High-reflective mirror
Type Mirror
Subtype HR (high-reflection) mirror
Angle of Incidence in degrees 45 °
Polarization regime (primary spectral range) p
Spectral category VIS-IR
Spectral working range low end 460 nm
Spectral working range high end 940 nm
Central wavelength 700 nm
Nominal GDD -fs2

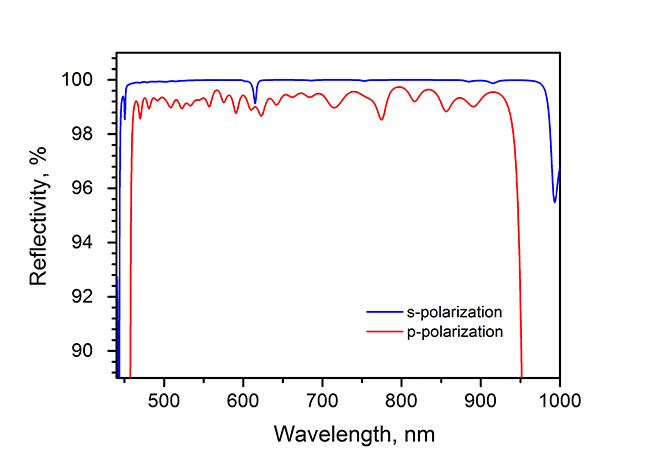

Minimum reflectance 98 %
Maximum reflectance -
Minimum transmission -
