HD7102

HD7102

Details

Description of the design Dispersive mirror
Type Mirror
Subtype DM (dispersive mirror)
Angle of Incidence in degrees 5 °
Polarization regime (primary spectral range) p,s
Spectral category UV
Spectral working range low end 255 nm
Spectral working range high end 265 nm
Central wavelength 260 nm

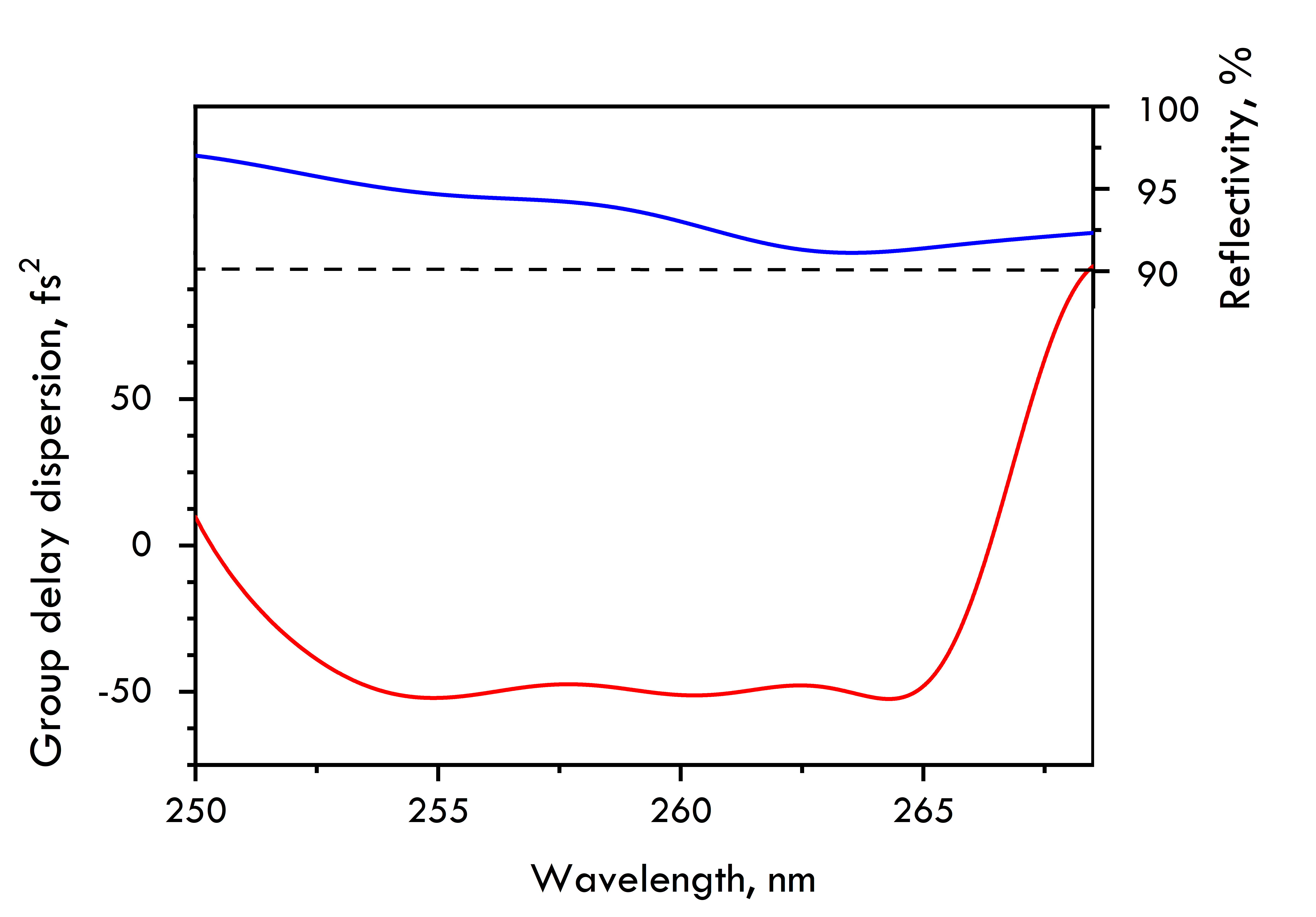

Nominal GDD -50 fs2
Minimum reflectance 90 %
Maximum reflectance -
Minimum transmission -
