HD120

HD120

Details

Description of the designHigh-dispersive mirror
TypeMirror
SubtypeHigh(negative)-dispersion mirror
Angle of Incidence in degrees5 °
Polarization regime (primary spectral range)p
Spectral categoryIR
Spectral working range low end950 nm
Spectral working range high end1120 nm
Central wavelength1035 nm

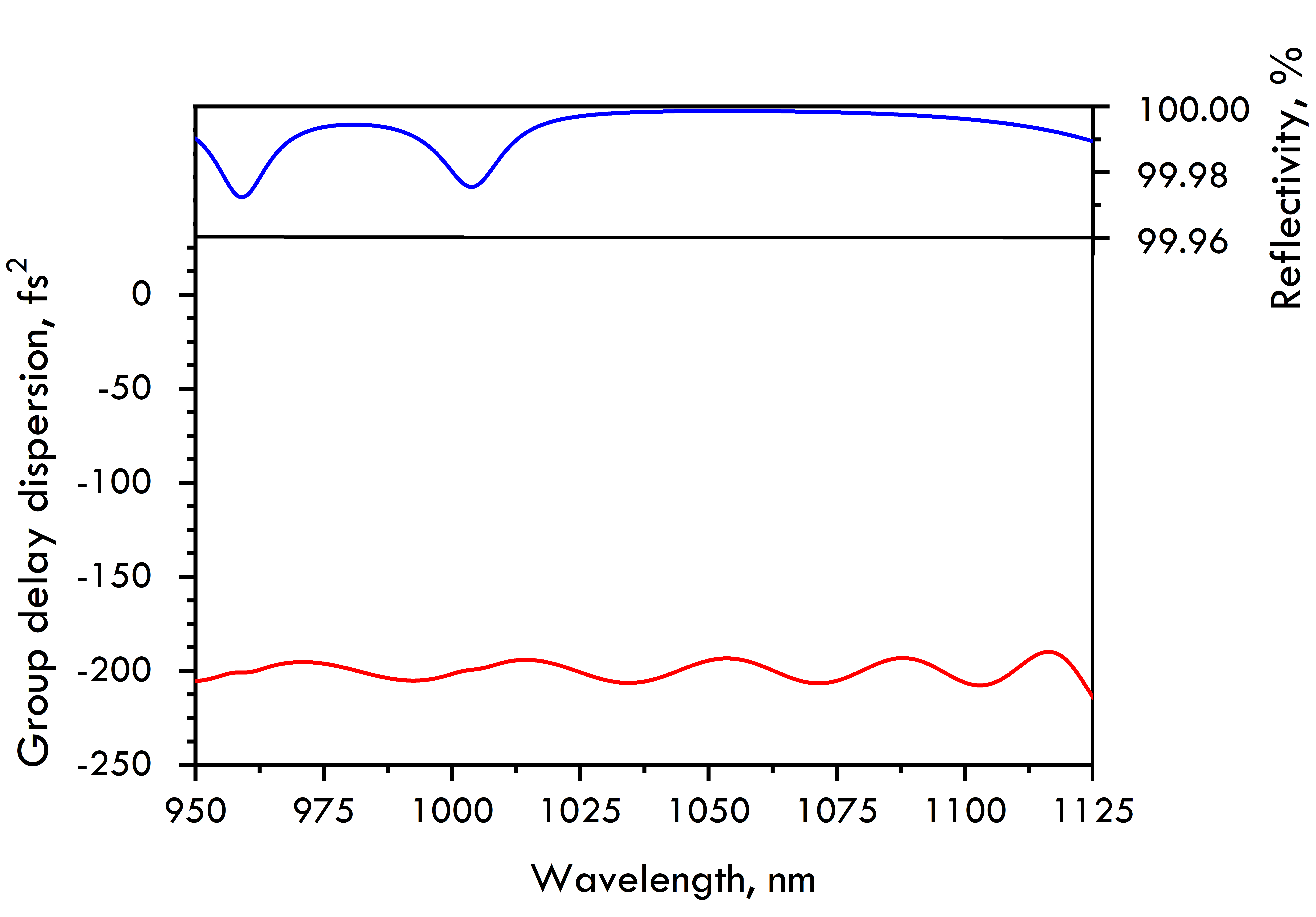

Nominal GDD-200 fs2
Minimum reflectance99.8 %
Maximum reflectance-
Minimum transmission-
