CM63

CM63

Details

Description of the designBroad-band dispersive mirror
TypeMirror
SubtypeDM (dispersive mirror)
Angle of Incidence in degrees5 °
Polarization regime (primary spectral range)p
Spectral categoryIR
Spectral working range low end720 nm
Spectral working range high end1000 nm
Central wavelength860 nm

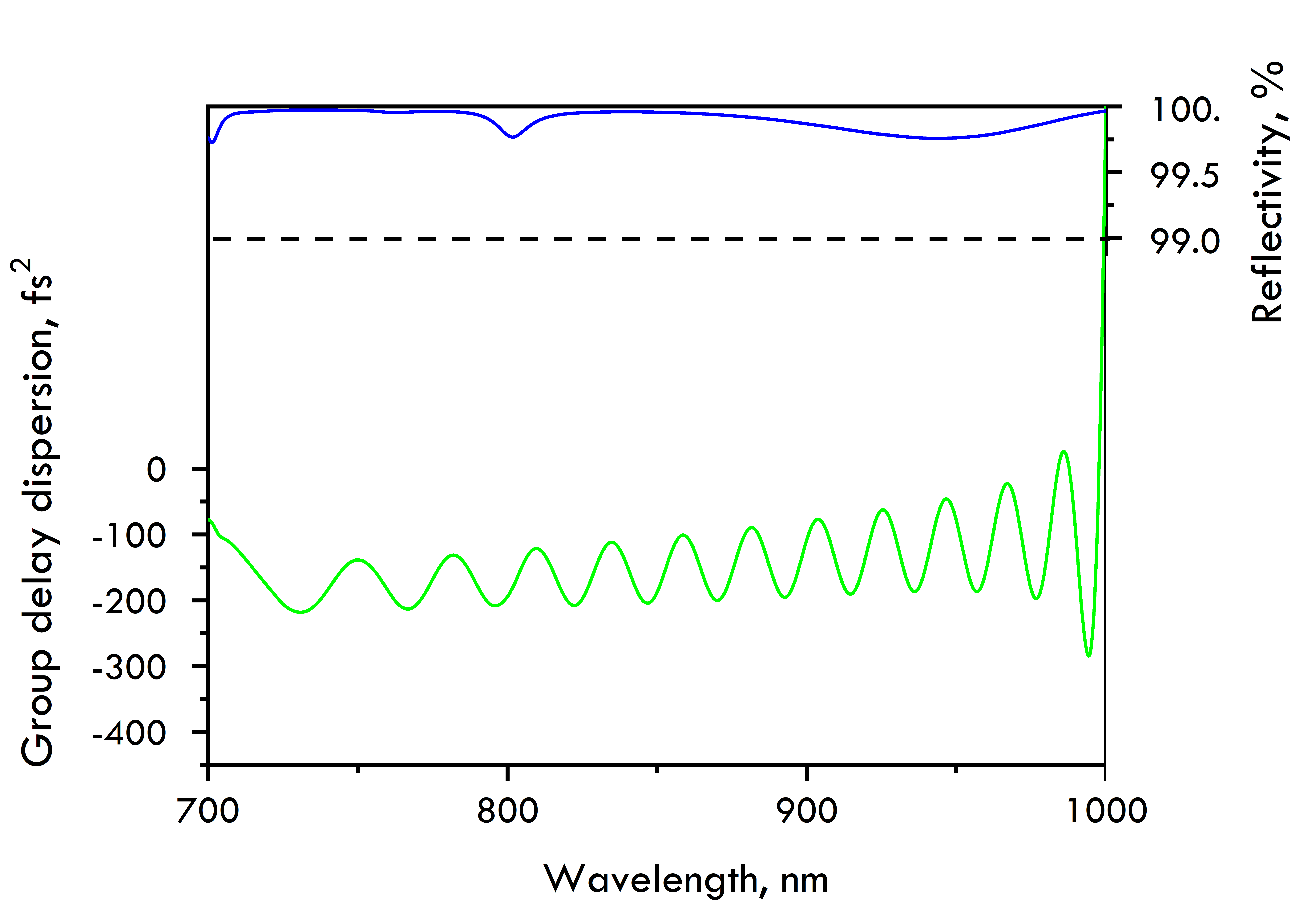

Nominal GDD-150 fs2
Minimum reflectance99 %
Maximum reflectance-
Minimum transmission-
