CM1531

CM1531

Details

Description of the design Dispersive mirror with high reflectivity
Type Mirror
Subtype DM (dispersive mirror)
Angle of Incidence in degrees 5 °
Polarization regime (primary spectral range) p
Spectral category VIS-IR
Spectral working range low end 1900 nm
Spectral working range high end 2200 nm
Central wavelength 2050 nm

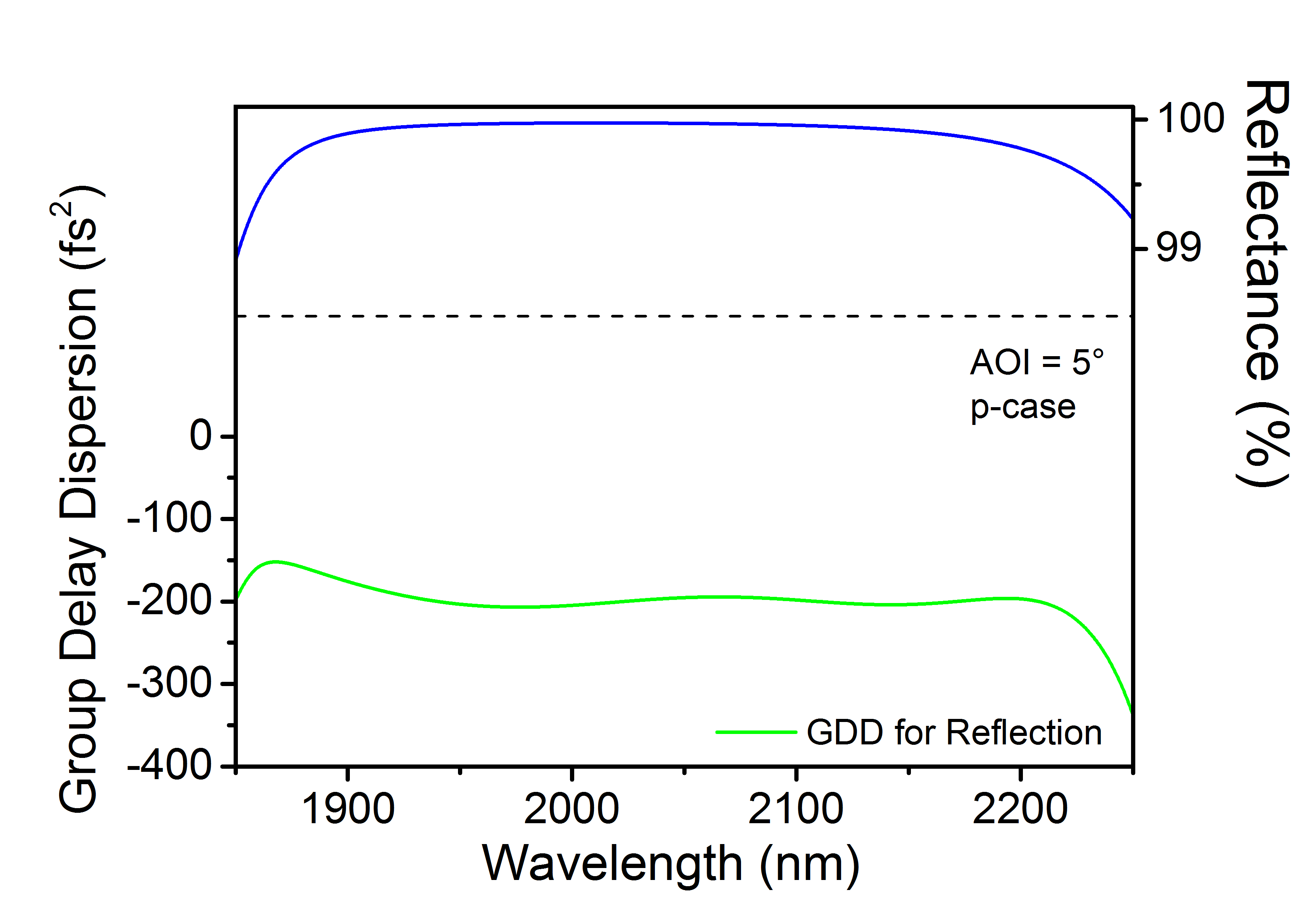

Nominal GDD -200 fs2
Minimum reflectance 99.7 %
Maximum reflectance -
Minimum transmission -
