CM1331

CM1331

Details

Description of the design Broad-band dispersive mirror
Central wavelength 800 nm
Spectral working range low end 760 nm
Spectral working range high end 840 nm
Maximum reflectance -
Minimum reflectance 99 %

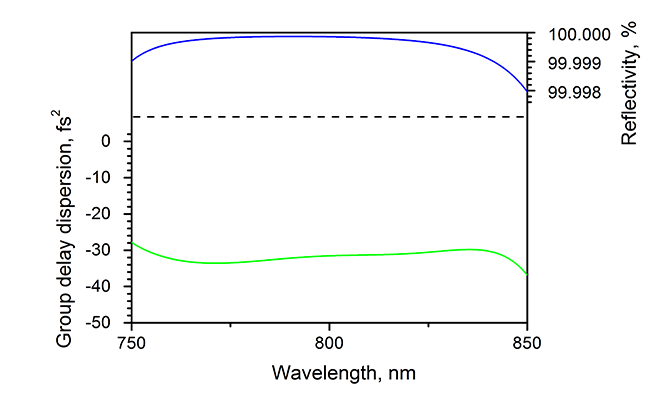

Nominal GDD

-30 fs2

Angle of Incidence in degrees 0 °
Polarization regime (primary spectral range) p
Minimum transmission -
