BS1502

BS1502

Details

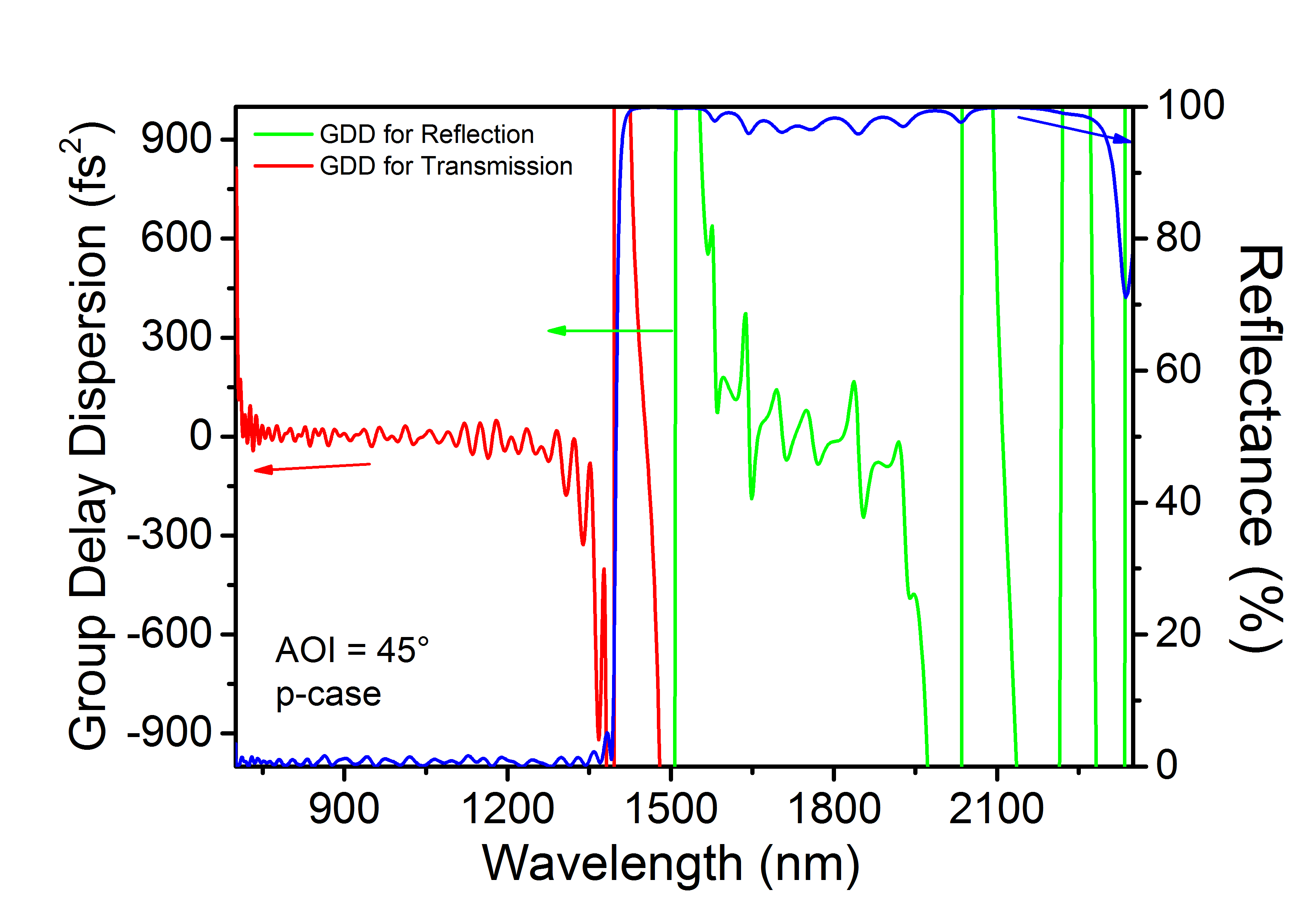

Description of the designBeam splitter, GDD = 0 fs2
TypeBeam splitter
SubtypeBS (Beam splitter)
Nominal GDD0 fs2
First working range
Angle of Incidence in degrees45 °
Angle of Incidence in degrees (double-angle)-
Polarization regime (primary spectral range)p
Spectral categoryVIS-IR
Spectral working range low end700 nm
Spectral working range high end1400 nm
Central wavelength1050 nm
Minimum reflectance-
Maximum reflectance-
Minimum transmission95 %
Second working range
Second spectral working range low end1400 nm
Second spectral working range high end2300 nm
Polarization regime (second working range)p
Minimum reflectance95 %
Minimum transmittance5 %
