Request
IR1322_RC1
Details

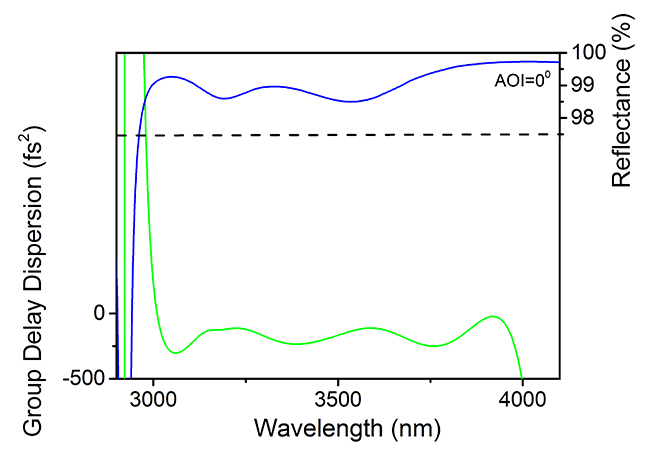

| Description of the design | Broad-band dispersive mirror |
| Type | Mirror |
| Subtype | DM (dispersive mirror) |
| Central wavelength | 3525 nm |
| Spectral working range low end | 3100 nm |
| Spectral working range high end | 3950 nm |
| Maximum reflectance | - |
| Minimum reflectance | 98 % |
| Nominal GDD | -200 fs2 |
| Angle of Incidence in degrees | 0 ° |
| Polarization regime (primary spectral range) | p |
| Minimum transmission | - |
| Spectral category | IR |
