Optics

CM347

Description of the design	Dispersive Input coupler
Type	Mirror
Subtype	DM (dispersive mirror)

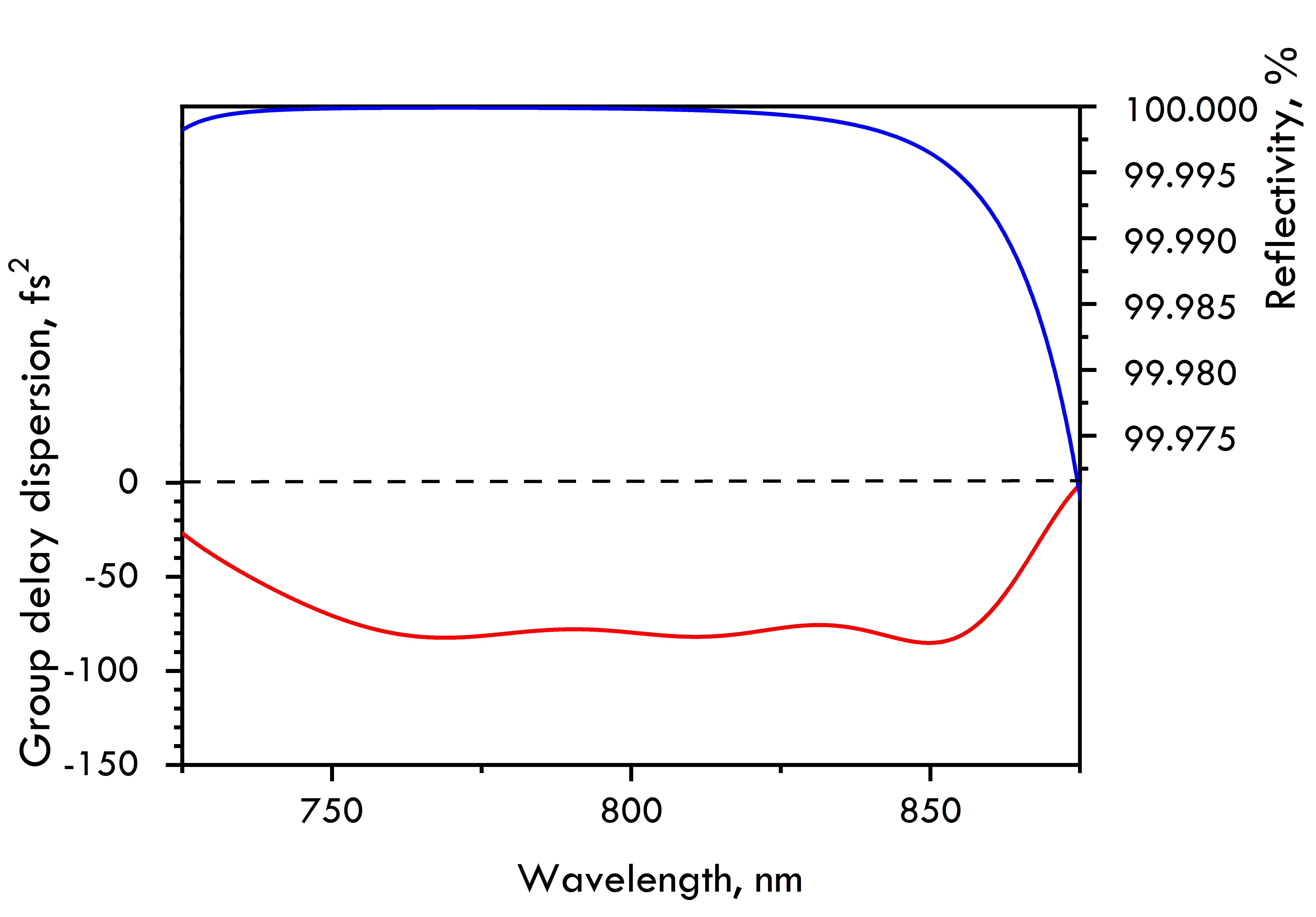

Nominal GDD	-80 fs²
First working range
Angle of Incidence in degrees	3 °
Angle of Incidence in degrees (double-angle)	5 °
Polarization regime (primary spectral range)	p
Spectral category	NIR
Spectral working range low end	750 nm
Spectral working range high end	850 nm
Central wavelength	800 nm
Minimum reflectance	99.98 %
Maximum reflectance	-
Minimum transmission	-
Second working range
Second spectral working range low end	530 nm
Second spectral working range high end	535 nm
Polarization regime (second working range)	p
Minimum reflectance	-
Minimum transmittance	98 %
