High-power product line

2024.06.26

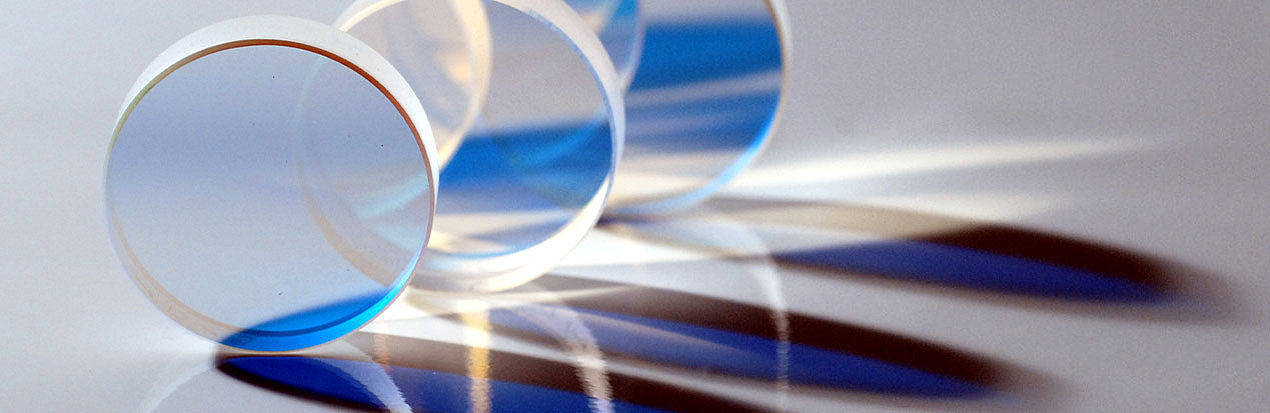

Optics and devices for the most powerful lasers in the world

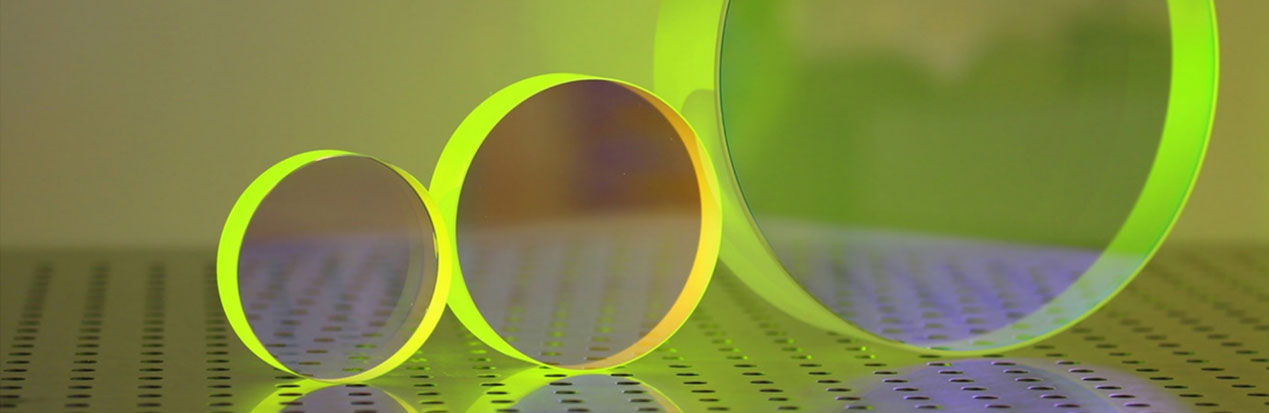

High-LIDT dispersive optics / up to 200 mm aperture optics

Laser Induced Damage Threshold (LIDT):

  • At 1064 nm, > 90 J/cm2
    • Test conditions: 10 ns pulse, 100 Hz rep. rate, and Ø286 μm beam diameter (1/e2)
  • At 1030 nm, > 0.3 J/cm2
    • Test conditions 1, > 0.24 J/cm2: 190 fs pulse, 1 kHz rep. rate, and ~Ø190 μm beam diameter (1/e2), in vacuum at 2*10-7 mbar
    • Test conditions 2, > 0.3 J/cm2: 1 ps pulse, 10 MHz rep. rate, and ~Ø100 μm beam diameter (1/e2), in air
  • At 790 nm, > 0.25 J/cm2
    • Test conditions: 30 fs pulse, 500 Hz rep. rate, and ~Ø140 μm beam diameter (1/e2)

Flyer


SAVANNA-HP stretched-flexible hollow-core fiber compressor /  high power laser pulse compression

  • Input pulse energy: few 10s mJ
  • Peak power: up to 400 GW. Average power: up to 100 W
  • Compression factor: 5–30x
  • Wavelength: 800, 1030 nm (others upon request)

Flyer

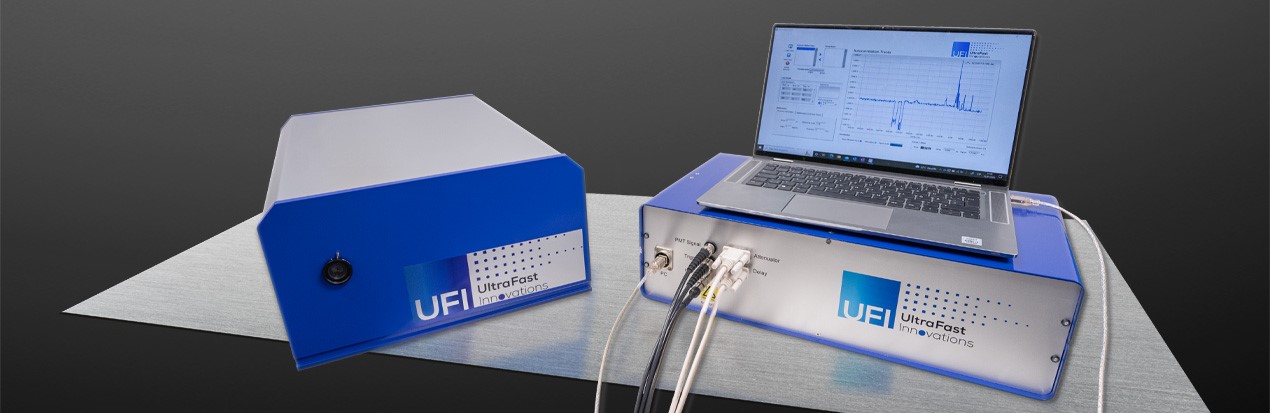

TUNDRA® third-order autocorrelator / characterization of laser pulse contrast

  • Up to 1014 dynamic range
  • Up to 3.8 ns scan range
  • Wavelengths: 800, 1030 nm (others upon request)

Flyer
