CM101

CM101

Details

Description of the design High-dispersive mirror
Type Mirror
Subtype High(negative)-dispersion mirror
Angle of Incidence in degrees 7 °
Polarization regime (primary spectral range) p
Spectral category IR
Spectral working range low end 730 nm
Spectral working range high end 880 nm
Central wavelength 805 nm

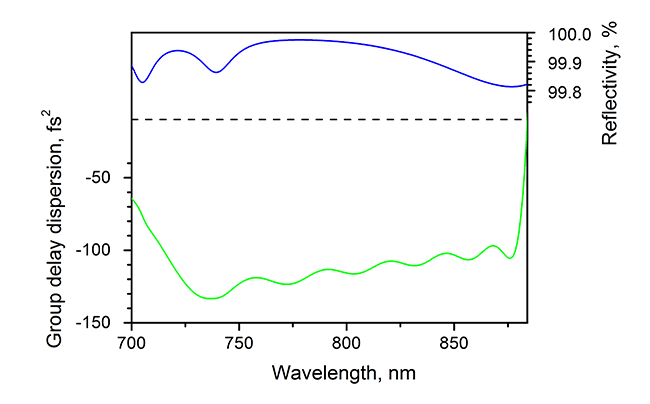

Nominal GDD -115 fs2
Minimum reflectance 99 %
Maximum reflectance -
Minimum transmission -
