BS1503

BS1503

Details

Description of the design Beam splitter

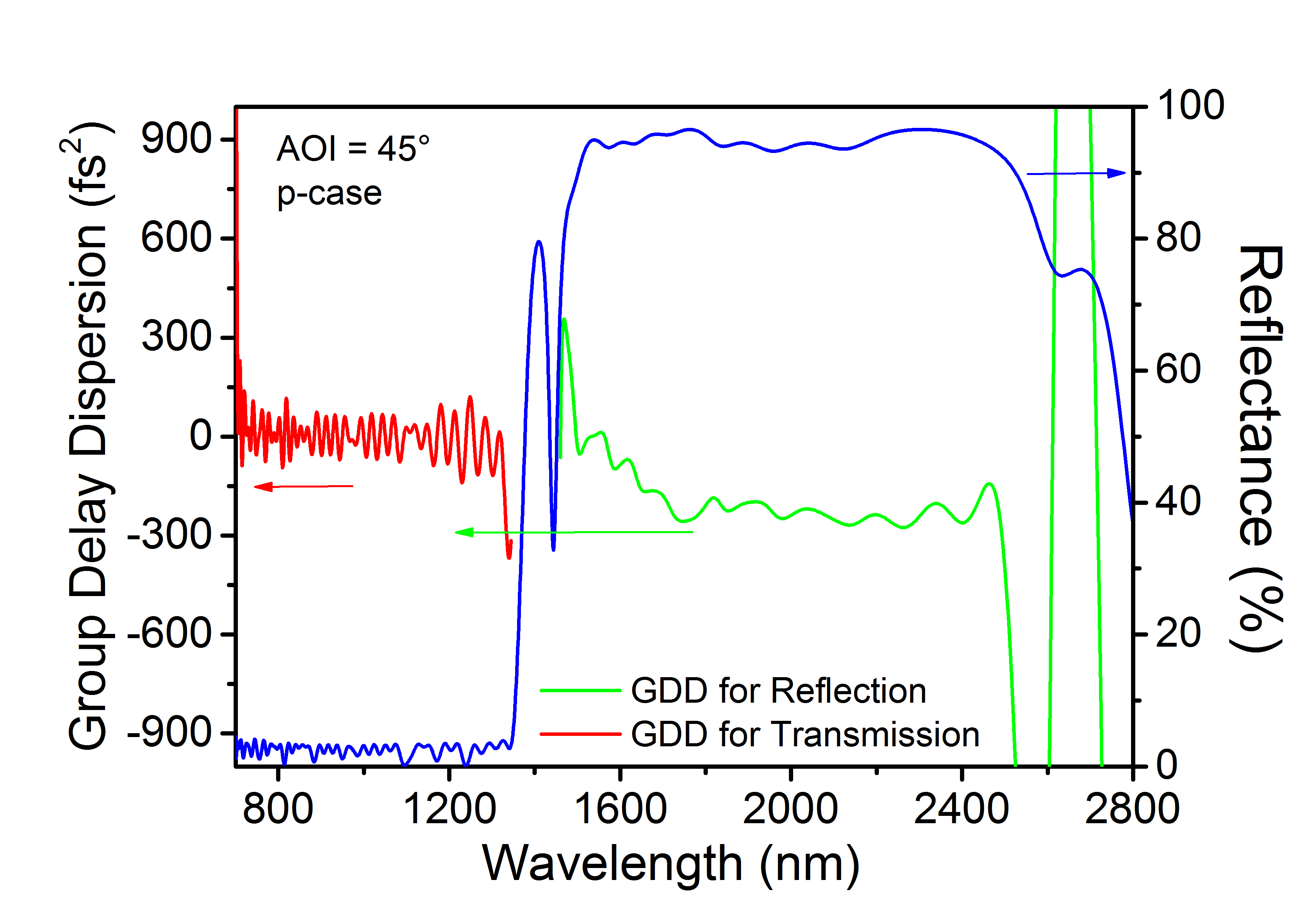

Nominal GDD

0 fs2

First working range
Central wavelength 1025 nm
Spectral working range low end 700 nm
Spectral working range high end 1350 nm
Maximum reflectance -
Minimum reflectance -
Angle of Incidence in degrees 45 °
Angle of Incidence in degrees (double-angle) -
Polarization regime (primary spectral range) p
Minimum transmission 95 %
Second working range
Second spectral working range low end 1500 nm
Second spectral working range high end 2300 nm
Minimum reflectance 92 %
Polarization regime (second working range) p
Minimum transmittance -
